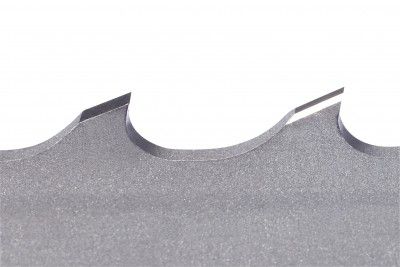

Bimetal band saw blades made of ~4% high chrome alloyed tenacious backing material and a HSS cutting edge made of HSS M51 / material No. 1.3207 with a cobalt and tungsten content of 10% each reaching a hardness of ~69 HRc.
The higher alloyed cutting edge is designed to cut high strength steels grades. Higher resistance against thermal and abrasive wear increases the service life especially cutting long cross sections
These blades are designed to cut higher alloyed solids and tick walled tubes on low vibration machinery.
K = Hook tooth | S = Standard tooth | ||||||||
DIMENSIONS | PITCHES / TEETH PER INCH (TPI) | |||||||
WIDTH (MM) | THICKNESS (IN) | 0.75/1.25 | 1.1/1.6 | 1.5/2 | 2/3 | 3/4 | 4/5 | 4/6 |
27 x 0.90 | 1 1/16 x 0.035 | K | K | K | K | |||
34 x 1.10 | 1 3/8 x 0.042 | K | K | K | ||||
41 x 1.30 | 1 5/8 x 0.050 | K | K | K | K | |||
54 x 1.60 | 2 1/8 x 0.063 | K | K | K | K | |||
67 x 1.60 | 2 5/8 x 0.063 | K | K | K | K | |||
80 x 1.60 | 3 1/8 x 0.063 | K |
